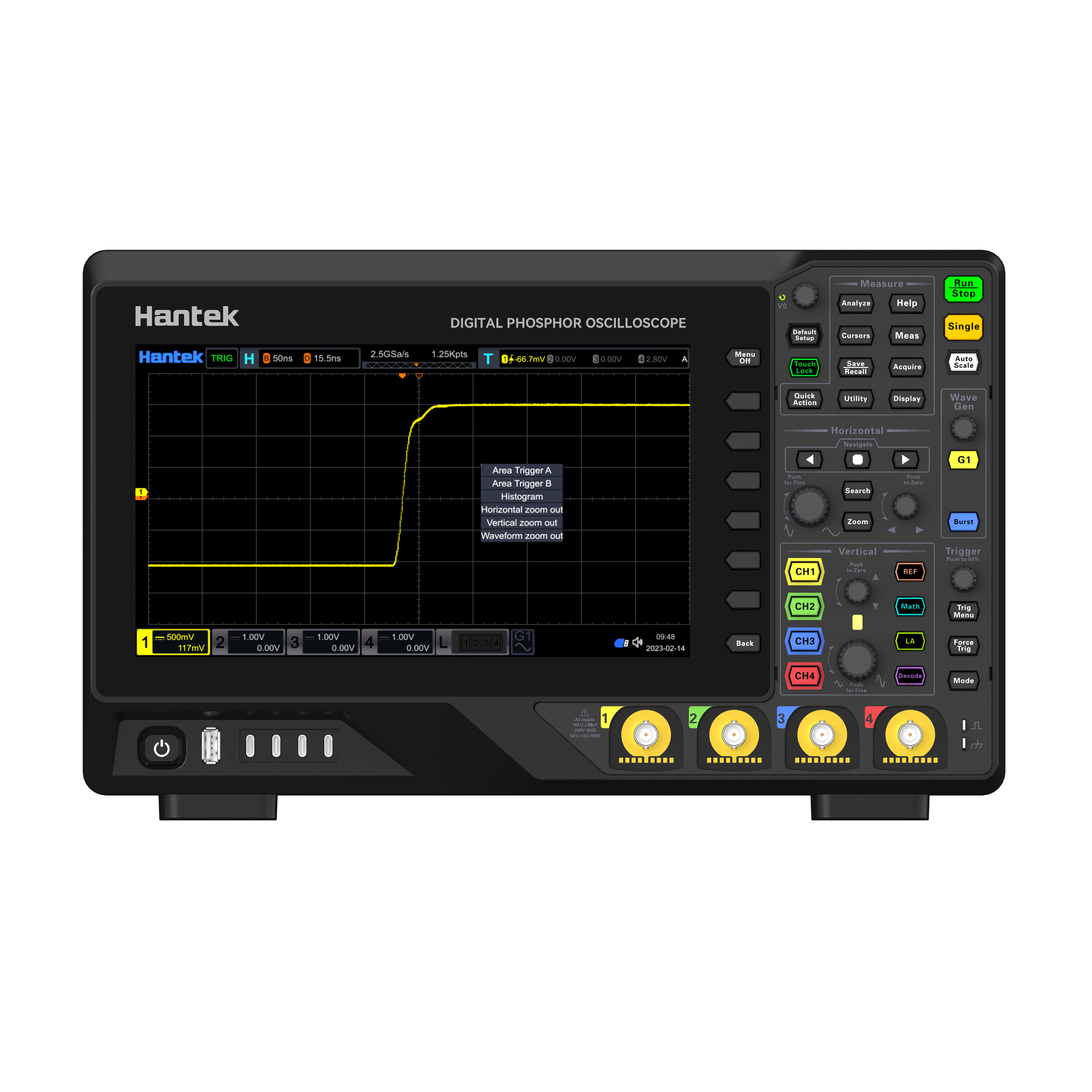

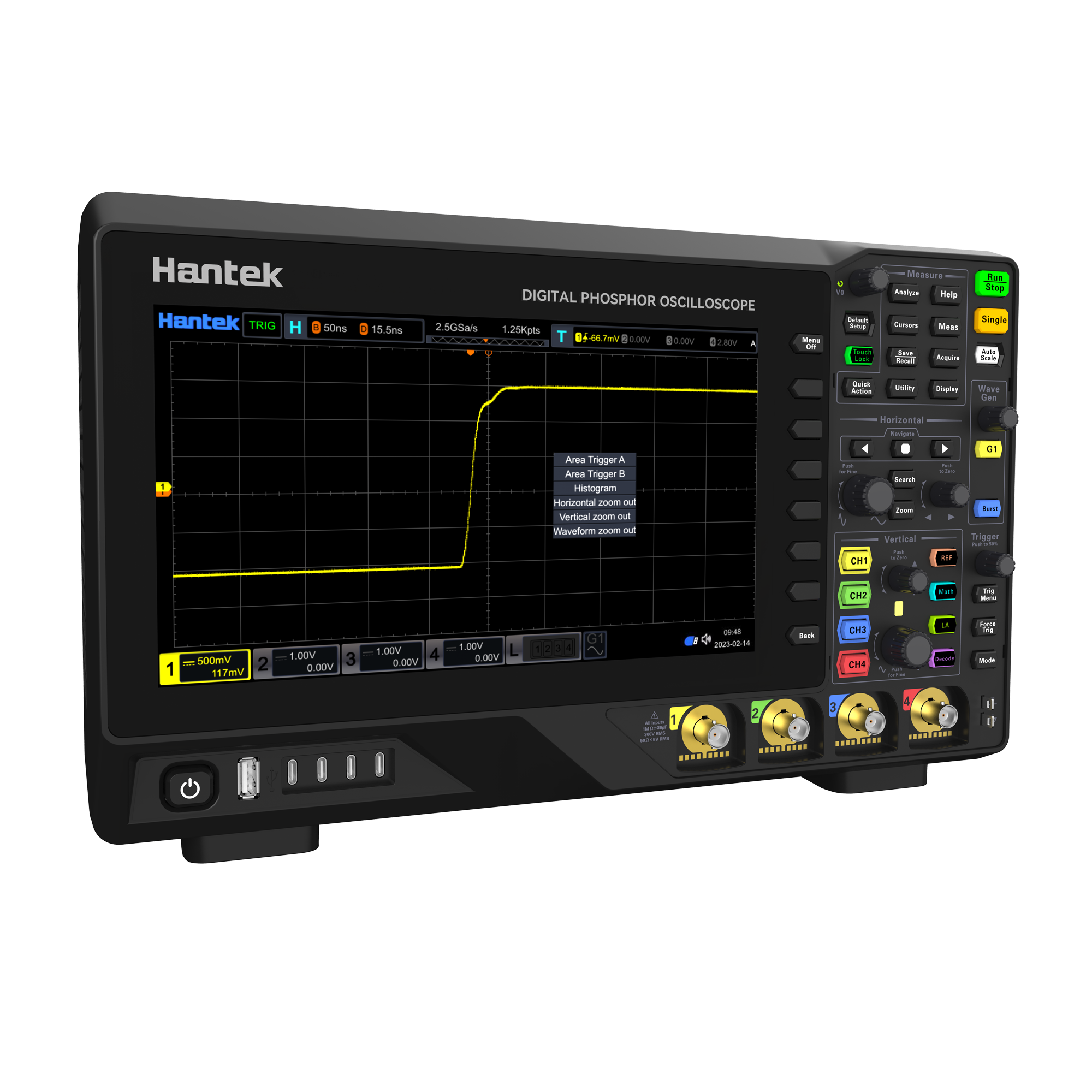

HRDO2000 Series
12-bit vertical resolution, 500MHz bandwidth, 2.5GSa/s sampling rate; Waveform capture rate is higher than 1.1 million waveforms per second, quickly capture instantaneous signals; Set 8 independent instruments in one, highly integrated function; 10.1 inch multi-touch capacitive screen with 256 level waveform gray scale and color temperature display; Rich serial protocol triggering and decoding capabilities. Up to 51 waveform parameters are automatically measured, plus full-memory hardware measurement. A variety of data analysis and processing functions, such as independent search, navigation keys and event lists, histograms, baud charts, power analysis, counters, etc., improve work efficiency. Choosing HRDO2000 is to choose an efficient, accurate and convenient test solution!
  • 12bit vertical resolution, up to 2.5GSa/s sampling rate, up to 500MHz bandwidth;
  • Set 8 independent instruments in one, including: 4-Channel oscilloscope/16-channel logic analyzer/spectrum analyzer/arbitrary wave generator/digital voltmeter / frequency meter and accumulator/protocol analyzer/protocol generator;
  • 10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display;
  • Rich serial protocol triggering and decoding functions;
  • Waveform capture rate is higher than 1.1 million waveforms per second;
  • Up to 51 kinds of waveform parameters are automatically measured;
  • Multiple data analysis and processing functions: frequency meter, DVM, power analyzer, histogram, search, navigate, record, bode set.
Model Channel Bandwidth Vertical Resolution Highest real-time Sampling Rate Maximun Memory
Depth 		Maximum Waveform
Capture Rate 		Logical Analyzer Waveform Generator
HRDO2504E 4CH 500MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s 16CH 50MHz,1CH
HRDO2354E 4CH 350MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s 16CH 50MHz,1CH
HRDO2204E 4CH 200MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s 16CH 50MHz,1CH
HRDO2104E 4CH 100MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s 16CH 50MHz,1CH
HRDO2504C 4CH 500MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO2354C 4CH 350MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO2204C 4CH 200MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO2104C 4CH 100MHz 12-bit 2.5GSa/s 2Gpts 1,100,000 wfms/s -- --
Model HRDO2504E HRDO2354E HRDO2204E HRDO2104E
Channel 4-Channel Oscilloscope+1-Channel Waveform Generator +16-Channel Logic Analyzer
Bandwidth 500MHz 350MHz 200MHz 100MHz
Real-time Sampling Rate 2.5GSa/s single channel, 2.5GSa/s half channel, 1.25GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels)
Waveform Capture Rate 1,100,000 wfms/s
Vertical Resolution 12-bit
Vertical Sensitivity 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range 500ps/div~1ks/div 1ns/div~1ks/div 2ns/div~1ks/div 2ns/div~1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limitation 20 MHz, 100MHz, 200MHZ, 350MHz; Independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%，50 Ω ± 1% ；18 pF ± 3 pF
Arbitrary Waveform Generator 1-channel signal source, 12-bit vertical resolution, maximum output frequency 50 MHz, Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channel 16CH, 1.25GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow

Model HRDO2504E HRDO2354E HRDO2204E HRDO2104E
Channel 4-Channel Oscilloscope+1-Channel Waveform Generator +16-Channel Logic Analyzer
Bandwidth 500MHz 350MHz 200MHz 100MHz
Real-time Sampling Rate 2.5GSa/s single channel, 2.5GSa/s half channel, 1.25GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels)
Waveform Capture Rate 1,100,000 wfms/s
Vertical Resolution 12-bit
Vertical Sensitivity 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range 500ps/div~1ks/div 1ns/div~1ks/div 2ns/div~1ks/div 2ns/div~1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limitation 20 MHz, 100MHz, 200MHZ, 350MHz; Independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%，50 Ω ± 1% ；18 pF ± 3 pF
Arbitrary Waveform Generator 1-channel signal source, 12-bit vertical resolution, maximum output frequency 50 MHz, Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channel 16CH, 1.25GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow
Standard Accessories
Passive probe
Four-channel machine with four passive probes; 100MHz machine with HT-100B; 200MHz machine with HT-200B; 350MHz machine with HT300B; 500MHz machine with HT500B.
Power cord
The instrument comes standard with a power cord of the user's country standard, and can also be purchased separately.
Packing list
Includes: Calibration certificate, packing list, warranty card and certificate of conformity.
Data cable
Type-C data cable for communication between instrument and PC. Before using the Keysight IO software, install it on the PC.
Optional Accessories

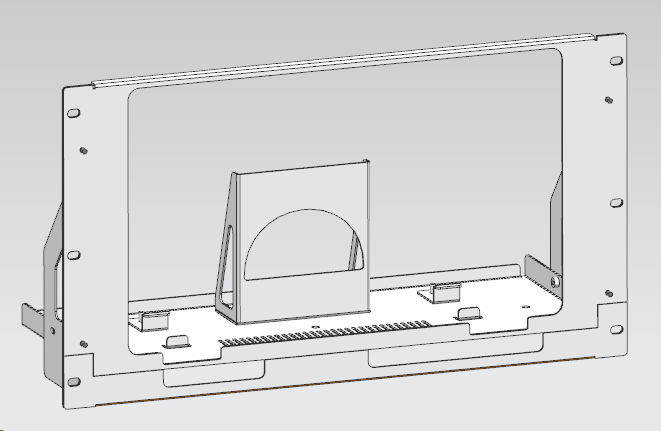

Oscilloscope rack kit
It is used to fix the machine to the test cabinet.

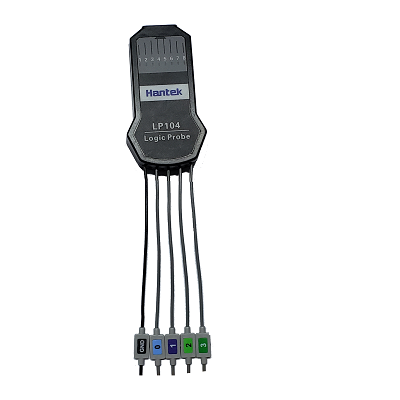

Logic Analyzer - Probe
Logic analyzer test accessories.

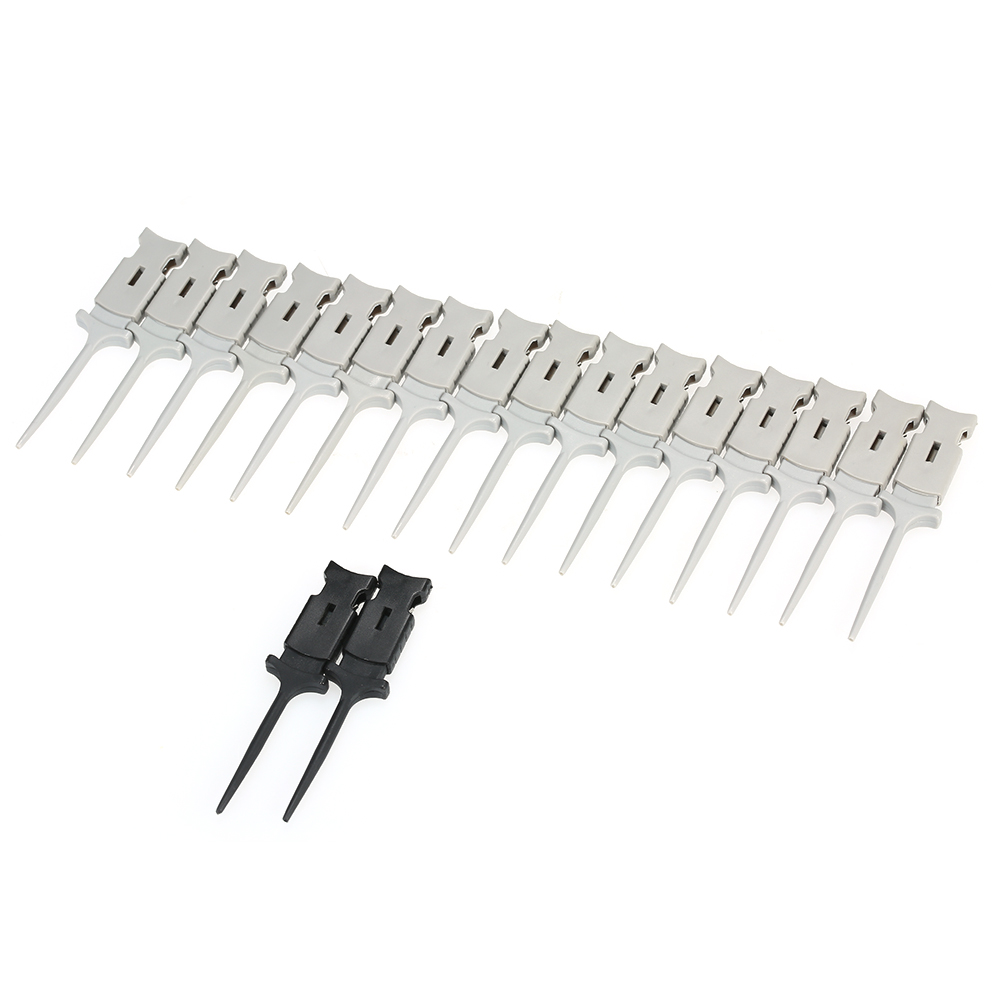

Logic Analyzer - Clip
Test clips for logic analyzers.

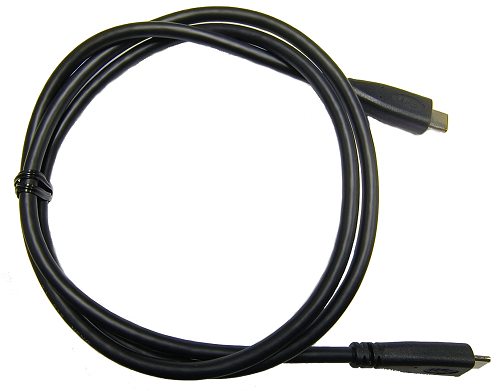

Logic Analyzer - Connection cable
Logic analyzer test accessories.
Probe
Model Description View Manual
HT300B,HT500B 350Mhz,500MHz,10:1/1:1 Download
HT-100B，HT-200B 100MHz,200MHz,10:1/1:1 Download
PP-80,PP-150,PP-200 60MHz,100MHz,200MHz,10:1/1:1 Download
PP80B, PP150B, PP200B, PP300B 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 Download
PP-90 80MHz,10:1/1:1 Download
T3100 100MHz，100：1，2000VDC Peak AC Download
AC/DC Current Clamp
Model Description View Manual
CC65 AC/DC: 0 – 20KHz，20mA to 65A DC Download
CC650 AC:0 – 5KHz，1A - 500A ，DC:1A - 650A Download
CC800 AC:0 – 5KHz，1A - 500A ，DC:1A - 800A Download
High voltage isolated probe
Model Description View Manual
HT8050 50MHz，1300V peakAC，1:50，1:500 Download
HT8100 100MHz，1300V peakAC，1:50，1:500 Download
