HRDO4000 Series
12-bit vertical resolution, 3GHz bandwidth, 10GSa/s sampling rate; Waveform capture rate is higher than 1.1 million waveforms per second, quickly capture instantaneous signals; Set 8 independent instruments in one, highly integrated function; Built-in dual channel 200MHz signal source, ±7V voltage output, can meet diverse test needs; 10.1 inch multi-touch capacitive screen with 256 level waveform gray scale and color temperature display; Rich serial protocol triggering and decoding capabilities. Up to 51 waveform parameters are automatically measured, plus full-memory hardware measurement. A variety of data analysis and processing functions, such as independent search, navigation keys and event lists, histograms, baud charts, power analysis, counters, etc., improve work efficiency. Choosing HRDO4000 is to choose an efficient, accurate and convenient test solution!
  • 12bit vertical resolution, up to 10GSa/s sampling rate, maximum 3GHz bandwidth;
  • Set 8 independent instruments in one, including: 4-Channel oscilloscope/16-channel logic analyzer/spectrum analyzer/2-Channel arbitrary wave generator/digital voltmeter / 5-bit frequency meter and accumulator/protocol analyzer/protocol generator;
  • Built-in dual channel 200MHz signal source, ±7V voltage output, 1GSa/s sampling rate;
  • 10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display;
  • Rich serial protocol triggering and decoding functions;
  • Waveform capture rate is higher than 1.1 million waveforms per second;
  • Up to 51 kinds of waveform parameters are automatically measured, and full memory hardware measurement function is also provided;
  • Multiple data analysis and processing functions: independent search, navigation keys and event list, histogram, baud chart, power analysis, counter.
Model Channel Bandwidth Vertical Resolution Highest real-time Sampling Rate Maximun Memory
Depth 		Maximum Waveform
Capture Rate 		Logical Analyzer Waveform Generator
HRDO4304E 4CH 3GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
HRDO4254E 4CH 2.5GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
HRDO4204E 4CH 2GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
HRDO4104E 4CH 1GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
HRDO4084E 4CH 800MHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
HRDO4054E 4CH 500MHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s 16CH 200MHz,2CH
Model Channel Bandwidth Vertical Resolution Highest real-time Sampling Rate Maximun Memory
Depth 		Maximum Waveform
Capture Rate 		Logical Analyzer Waveform Generator
HRDO4304C 4CH 3GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO4254C 4CH 2.5GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO4204C 4CH 2GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO4104C 4CH 1GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO4084C 4CH 800MHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- --
HRDO4054C 4CH 500MHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- --
Model Channel Bandwidth Vertical Resolution Highest real-time Sampling Rate Maximun Memory
Depth 		Maximum Waveform
Capture Rate 		Logical Analyzer Waveform Generator
HRDO4304D 4CH 3GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- 200MHz,2CH
HRDO4254D 4CH 2.5GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- 200MHz,2CH
HRDO4204D 4CH 2GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- 200MHz,2CH
HRDO4104D 4CH 1GHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- 200MHz,2CH
HRDO4084D 4CH 800MHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- 200MHz,2CH
HRDO4054D 4CH 500MHz 12-bit 10GSa/s 2Gpts 1,100,000 wfms/s -- 200MHz,2CH
Model HRDO4304E HRDO4254E HRDO4204E HRDO4104E HRDO4084E HRDO4054E
Channel 4-Channel Oscilloscope+2-Channel Waveform Generator +16-Channel Logic Analyzer
Bandwidth 3GHz 2.5GHz 2GHz 1GHz 800MHz 500MHz
Real-time Sampling Rate 10GSa/s single channel, 10GSa/s half channel, 5GSa/s all channel
Memory Depth 1Gpts (single channel), 500Mpts(dual channel), 250Mpts (three-four channels)
Waveform Capture Rate 1,100,000 wfms/s
Vertical Resolution 12-bit
Vertical Sensitivity 1 MΩ： 500μV/div ~ 10 V/div；50 Ω：1mV/div ~ 1 V/div 1 MΩ： 500μV/div ~ 10 V/div；50 Ω：500μV/div ~ 1 V/div
Time Base Range 100ps/div~1ks/div 100ps/div~1ks/div 100ps/div~1ks/div 200ps/div~1ks/div 500ps/div~1ks/div 500ps/div~1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limitation 20 MHz, 200MHz; Independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%，50 Ω ± 1% ；20 pF ± 3 pF 1 MΩ ± 1%，50 Ω ± 1% ；18 pF ± 3 pF
Arbitrary Waveform Generator 2-channel signal source, 16-bit vertical resolution, maximum output frequency 50 MHz, Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channel 16CH, 1GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow
Model HRDO4304E HRDO4254E HRDO4204E HRDO4104E HRDO4084E HRDO4054E
Channel 4-Channel Oscilloscope+2-Channel Waveform Generator +16-Channel Logic Analyzer
Bandwidth 3GHz 2.5GHz 2GHz 1GHz 800MHz 500MHz
Real-time Sampling Rate 10GSa/s single channel, 10GSa/s half channel, 5GSa/s all channel
Memory Depth 1Gpts (single channel), 500Mpts(dual channel), 250Mpts (three-four channels)
Waveform Capture Rate 1,100,000 wfms/s
Vertical Resolution 12-bit
Vertical Sensitivity 1 MΩ： 500μV/div ~ 10 V/div；50 Ω：1mV/div ~ 1 V/div 1 MΩ： 500μV/div ~ 10 V/div；50 Ω：500μV/div ~ 1 V/div
Time Base Range 100ps/div~1ks/div 100ps/div~1ks/div 100ps/div~1ks/div 200ps/div~1ks/div 500ps/div~1ks/div 500ps/div~1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limitation 20 MHz, 200MHz; Independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%，50 Ω ± 1% ；20 pF ± 3 pF 1 MΩ ± 1%，50 Ω ± 1% ；18 pF ± 3 pF
Arbitrary Waveform Generator 2-channel signal source, 16-bit vertical resolution, maximum output frequency 50 MHz, Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channel 16CH, 1GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow
Standard Accessories

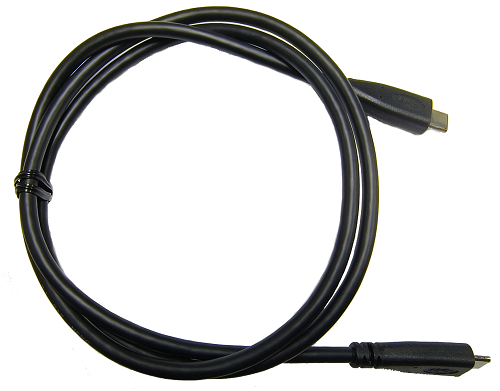

Data cable
Type-C data cable, used for instrument and PC communication. Before use, it is necessary to install Keysight IO software on the PC.
Power line
The instrument comes with a standard power cord from the user's country, which can also be purchased separately.
Passive probe
Two-channel machine with two passive probes; Four-channel machine with four passive probes; 100MHz machine with HT-100B; 200MHz machine with HT-200B; 350MHz machine with HT300B; 500MHz machine with HT500B.
Packing list
Including: calibration certificate, packing list, warranty card, and certificate of conformity.
Optional Accessories

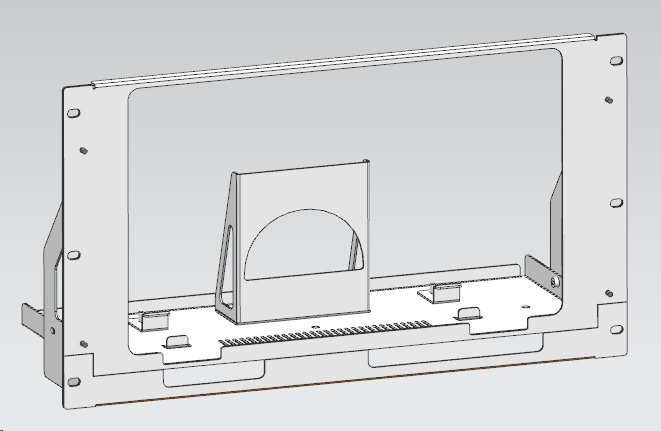

Oscilloscope rack kit
It is used to fix the machine to the test cabinet.

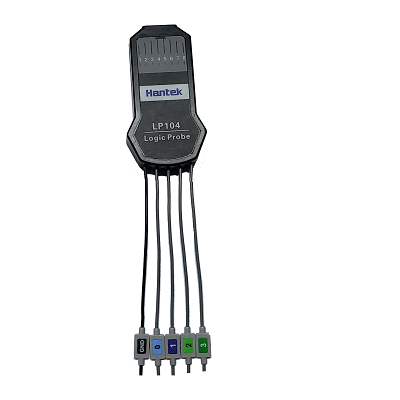

Logic Analyzer - Probe
Logic analyzer test accessories.

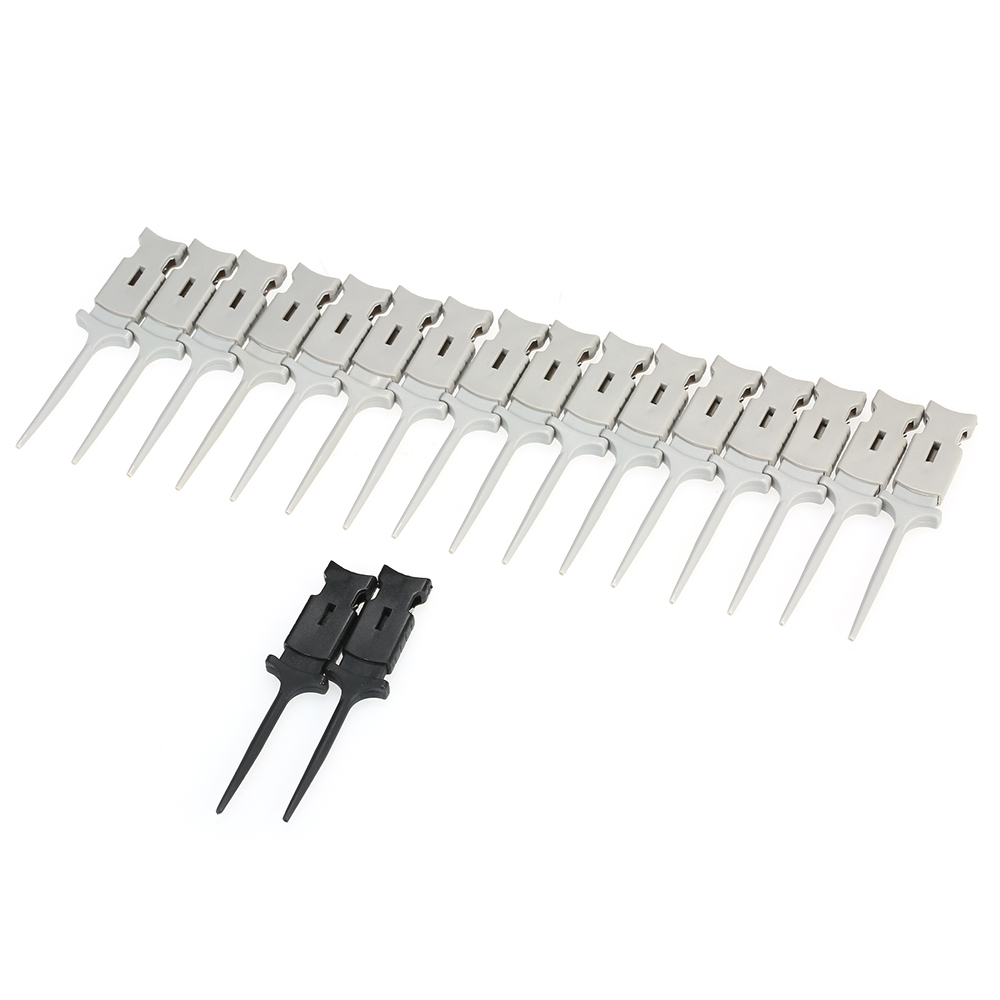

Logic Analyzer - Clip
Test clips for logic analyzers.
Logic Analyzer - Connection cable
Logic analyzer test accessories.
Probe
Model Description View Manual
HT300B,HT500B 350Mhz,500MHz,10:1/1:1 Download
HT-100B，HT-200B 100MHz,200MHz,10:1/1:1 Download
PP-80,PP-150,PP-200 60MHz,100MHz,200MHz,10:1/1:1 Download
PP80B, PP150B, PP200B, PP300B 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 Download
PP-90 80MHz,10:1/1:1 Download
T3100 100MHz，100：1，2000VDC Peak AC Download
AC/DC Current Clamp
Model Description View Manual
CC65 AC/DC: 0 – 20KHz，20mA to 65A DC Download
CC650 AC:0 – 5KHz，1A - 500A ，DC:1A - 650A Download
CC800 AC:0 – 5KHz，1A - 500A ，DC:1A - 800A Download
High voltage isolated probe
Model Description View Manual
HT8050 50MHz，1300V peakAC，1:50，1:500 Download
HT8100 100MHz，1300V peakAC，1:50，1:500 Download
