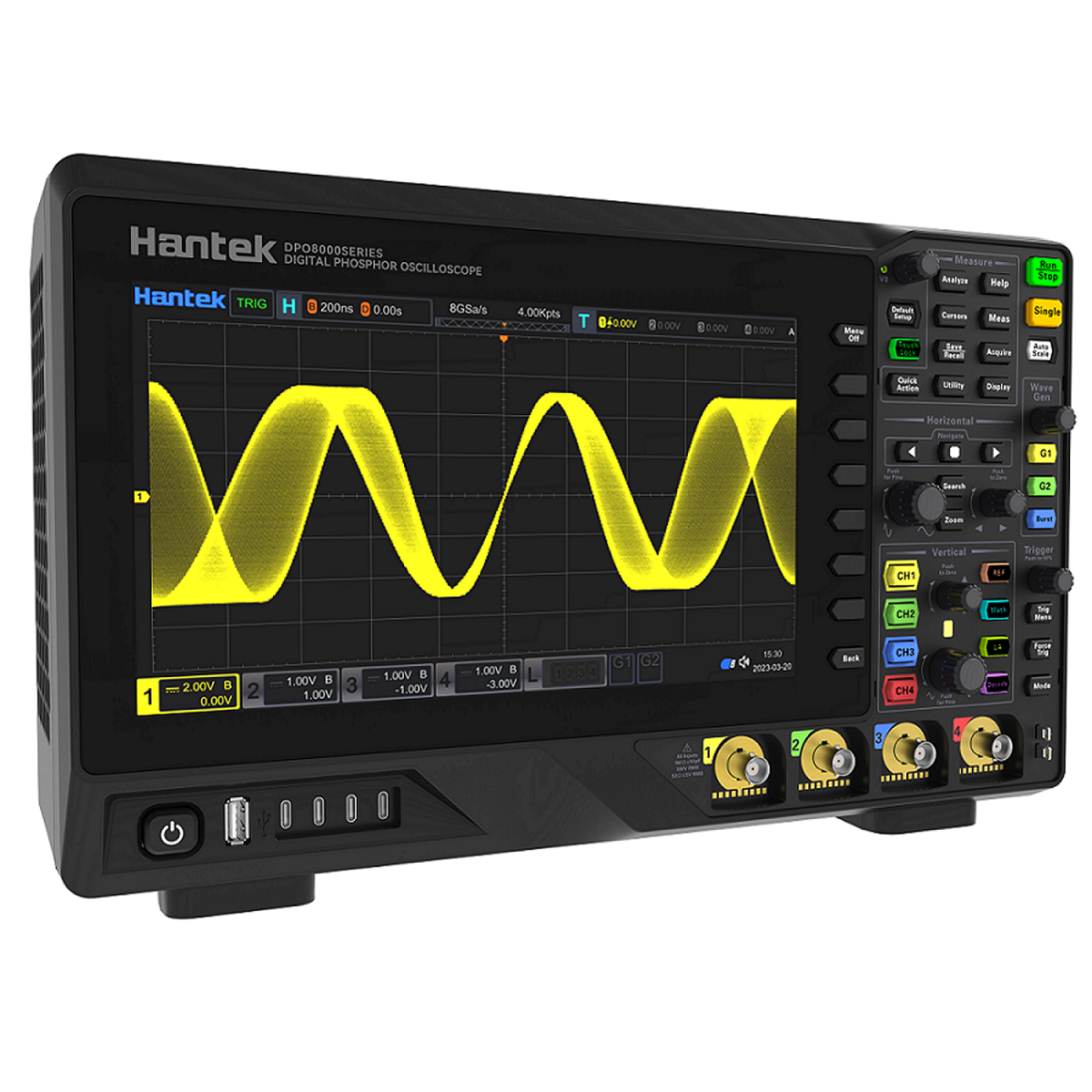

DPO8000 Series
10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display,1GHz bandwidth,8GSa/s sampling rate, 2G memory depth, 600.000wfms/s waveform capture rate; Built in two 200MHz waveform generator, supporting arbitrary wave output; 51 kinds of automatic measurement; Rich serial protocol triggering and decoding functions; Multiple data analysis and processing functions; Integrate the functions of 8 instruments, significantly simplify the measurement system and speed up the measurement; Rich configuration interfaces are provided for more convenient use; It is a reliable oscilloscope that can provide you with professional measurement.
  • Set 8 independent instruments in one, including: oscilloscope / 16-channel logic analyzer/spectrum analyzer/arbitrary wave generator/digital voltmeter / frequency meter and accumulator/protocol analyzer/protocol generator;
  • Real-time sampling rate up to 8GSa/s, 2G memory depth, hardware real-time waveform recording and playback up to 2 million frames;
  • UART, I2C, SPI, LIN, CAN protocol generation function;
  • Built-in two 200MHz signal sources, vertical resolution 12 bit, the highest output frequency 200MHz.
  • 10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display;
  • Waveform capture rate higher than 600,000 waveforms per second;
  • Rich serial protocol triggering and decoding functions;
  • Up to 51 kinds of waveform parameters are automatically measured, and full memory hardware measurement function is also provided;
  • Multiple data analysis and processing functions: Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set;
  • Standard USB HOST, USB DEVICE, LAN optional: HDMI, serial port;
  • Wide range, low noise, vertical sensitivity range :500μV/div~10 V/div, each gear supports full bandwidth;
  • Lisayu waveform support dual screen display, XY mode support cursor measurement;
Serial bus triggering and decoding
Provides bus triggering and decoding functions, supports multiple protocols RS232, I2C, SPI, LIN, CAN and can decode and display bus protocol information quickly and intuitively.
2G memory depth
Ultra-long memory depth of 2G. Fully understand waveform overall and details, will not lose any accidental events and waveform changes.
Waveform digital fluorescent display
Provide digital fluorescence multi-level waveform grayscale display effect, which can help users quickly find potential anomalies in the signal.
200MHz function/arbitrary waveform generator
Built in two 200MHz wavefrom generator, integrated with a variety of commonly used built-in waveforms, supports customized arbitrary waveform, arbitrary wave burst output, and modulated waveform output.
Area trigger function
By drawing the region, you can set the region trigger. The region trigger can simplify the operation of advanced trigger and quickly isolate the waveform of interest.
Test parameter function
5-digit digital voltmeter and 6-digit hardware frequency meter function; Real-time statistics of minimum, maximum, average, standard deviation and other information enable you to execute tests more efficiently.
Waveform recording and playback
The waveform recording function option is provided to record the waveform changes in real time without interruption, and mark the time on the signal, so as to play back the waveform conveniently and find out the fault.
Quick operation function
The shortcut operation panel including 15 common functions can be opened with one button without searching. Make the operation faster and the measurement more efficient.
Model  Analog   Channels  Bandwidth Max. Real-time Sampling Rate Max. Memory Depth Max. Waveform Capture Rate Digital Channels Waveform Generator
DPO8104C 4CH 1GHz 8GSa/s 2Gpts 600,000 wfms/s -- --
DPO8084C 4CH 800MHz 8GSa/s 2Gpts 600,000 wfms/s -- --
DPO8054C 4CH 500MHz 8GSa/s 2Gpts 600,000 wfms/s -- --
DPO8034C 4CH 350MHz 8GSa/s 2Gpts 600,000 wfms/s -- --
DPO8024C 4CH 200MHz 8GSa/s 2Gpts 600,000 wfms/s -- --

Model  Analog Channel  Bandwidth Max. Real-time Sampling Rate Max. Memory Depth Max. Waveform Capture Rate Digital Channels Waveform Generator
DPO8104E 4CH 1GHz 8GSa/s 2Gpts 600,000 wfms/s 16CH 200MHz, 2CH
DPO8084E 4CH 800MHz 8GSa/s 2Gpts 600,000 wfms/s 16CH 200MHz, 2CH
DPO8054E 4CH 500MHz 8GSa/s 2Gpts 600,000 wfms/s 16CH 200MHz, 2CH
DPO8034E 4CH 350MHz 8GSa/s 2Gpts 600,000 wfms/s 16CH 200MHz, 2CH
DPO8024E 4CH 200MHz 8GSa/s 2Gpts 600,000 wfms/s 16CH 200MHz, 2CH
Model DPO8104E DPO8084E DPO8054E DPO8034E DPO8024E
Channels 4 Channel Oscilloscope+2 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth 1GHz 800MHz 500MHz 350MHz 200MHz
Sampling Rate 8GSa/s single channel, 8GSa/s half channel, 4GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels)
Waveform Capture Rate 600,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution 8 bit
Input Sensitivity 1 MΩ： 500μV/div ~ 10 V/div；50 Ω：500μV/div ~ 1 V/div
Timebase Range 200ps/div~1ks/div 500ps/div~1ks/div 500ps/div~1ks/div 1ns/div~1ks/div 2ns/div~1ks/div
Timebase Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limit 20 MH, 100MHz, 200MHz, 350MHz, 650MHz, 750MHz (Independent optional for each channel)
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Serial Bus Decode UART, I2C, SPI, LIN, CAN
Arithmetic A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurements 51 measurements, measurements update continuously with statistics
Analyze Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Recorder More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance 1 MΩ ± 1%，50 Ω ± 1% ；21 pF ± 3 pF
Waveform Generator Sampling Rate: 1GSa/s
Amplitude Resolution: 16 bit
Max. Frequency: 200MHz
Wavefrom:Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channels Input Channels: 16CH

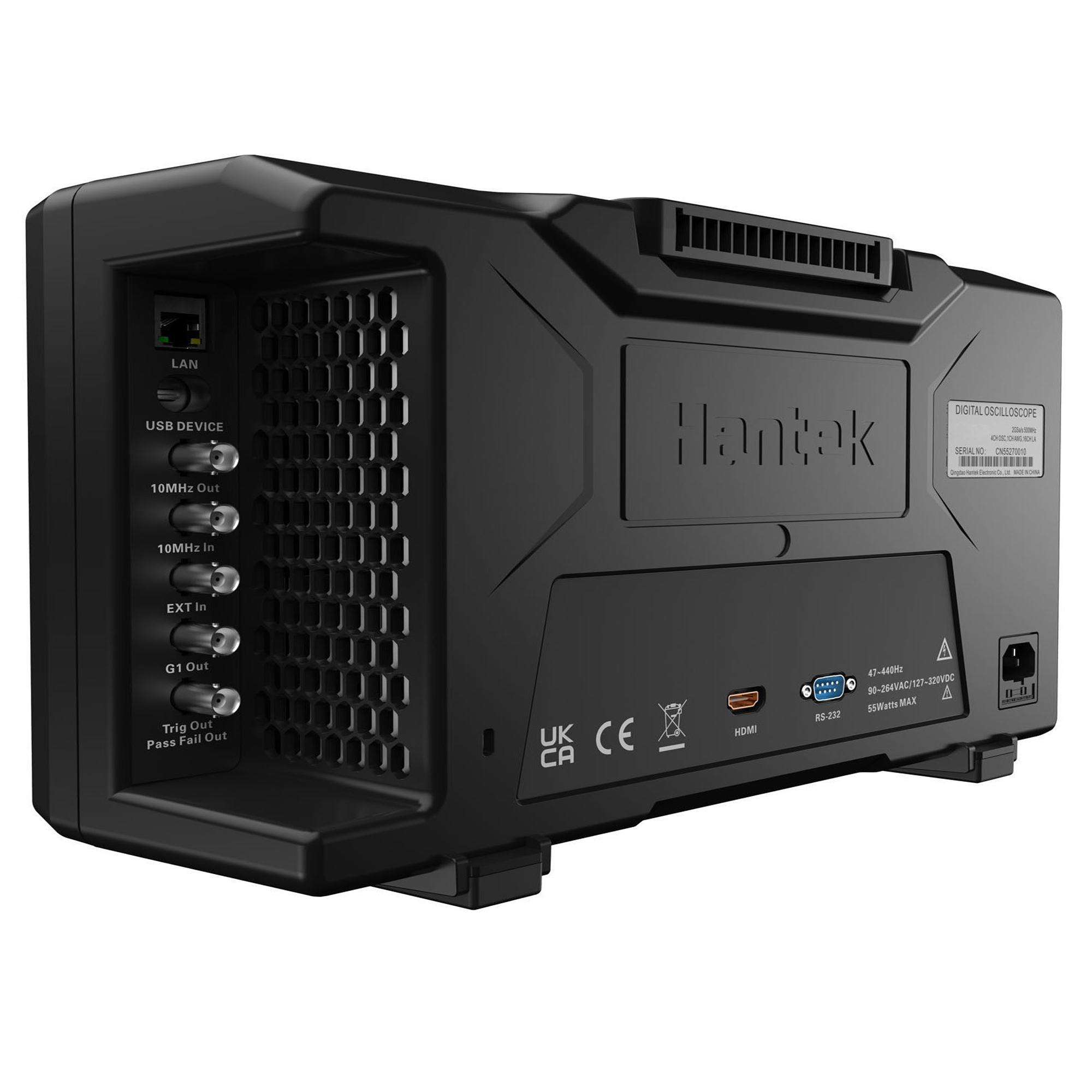

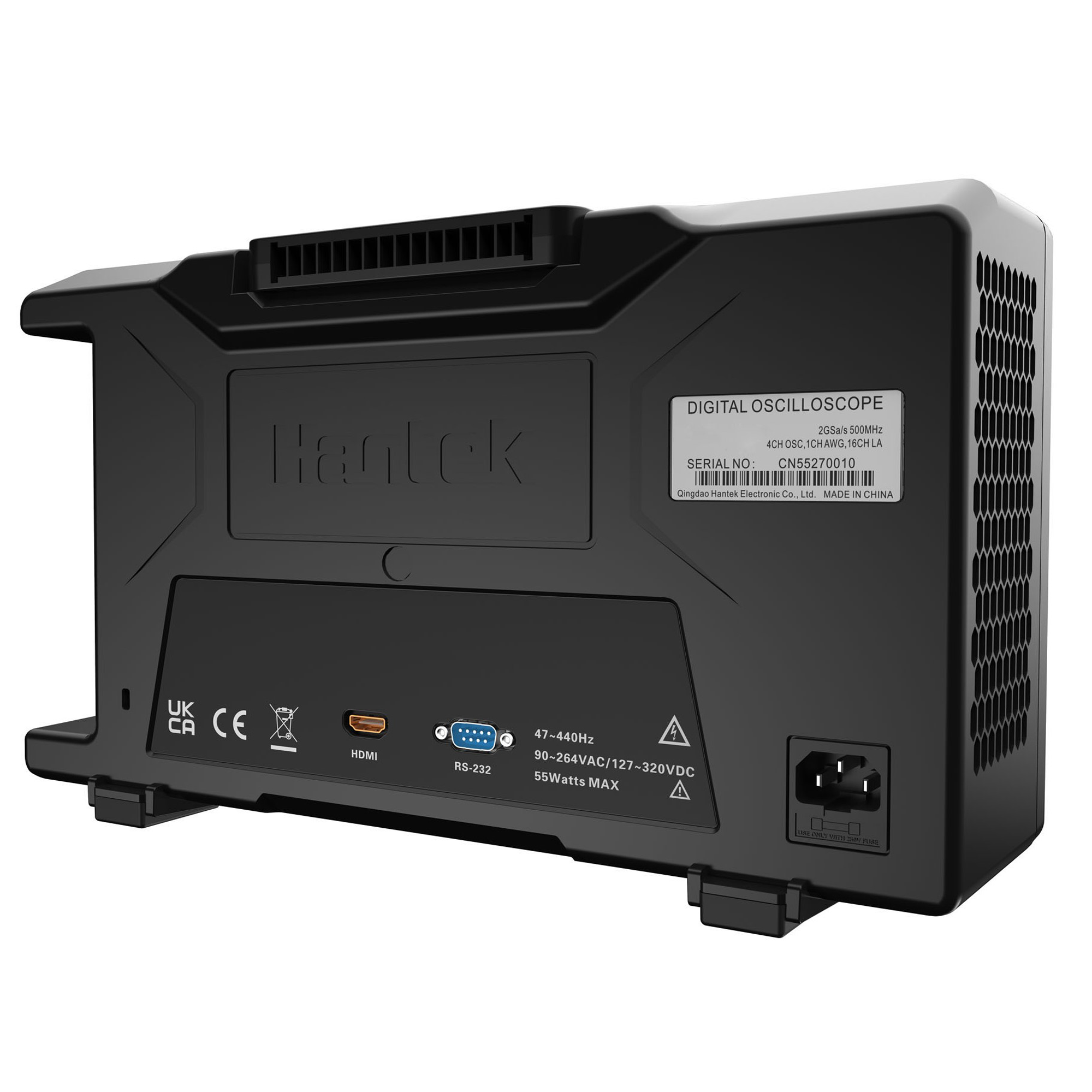

Connectivity USB HOST, USB DEVICE, LAN; Option ports: HDMI, RS232
Display 10.1 inch capacitive multi-touch, 256 intensity levels, color graded persistence

Model DPO8104E DPO8084E DPO8054E DPO8034E DPO8024E
Channels 4 Channel Oscilloscope+2 Channel Waveform Generator +16 Channel Logic Analyzer
Bandwidth 1GHz 800MHz 500MHz 350MHz 200MHz
Sampling Rate 8GSa/s single channel, 8GSa/s half channel, 4GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels)
Waveform Capture Rate 600,000 wfms/s [25ns dot display single channel automatic memory depth]
Vertical Resolution 8 bit
Input Sensitivity 1 MΩ： 500μV/div ~ 10 V/div；50 Ω：500μV/div ~ 1 V/div
Timebase Range 200ps/div~1ks/div 500ps/div~1ks/div 500ps/div~1ks/div 1ns/div~1ks/div 2ns/div~1ks/div
Timebase Accuracy ±1 ppm ± 1 ppm/year
Bandwidth limit 20 MH, 100MHz, 200MHz, 350MHz, 650MHz, 750MHz (Independent optional for each channel)
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Serial Bus Decode UART, I2C, SPI, LIN, CAN
Arithmetic A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurements 51 measurements, measurements update continuously with statistics
Analyze Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Recorder More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance 1 MΩ ± 1%，50 Ω ± 1% ；21 pF ± 3 pF
Waveform Generator Sampling Rate: 1GSa/s
Amplitude Resolution: 16 bit
Max. Frequency: 200MHz
Wavefrom:Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channels Input Channels: 16CH
Connectivity USB HOST, USB DEVICE, LAN; Option ports: HDMI, RS232
Display 10.1 inch capacitive multi-touch, 256 intensity levels, color graded persistence

Standard Accessories
Data cable
Type-C data cable, used for instrument and PC communication. Before use, it is necessary to install Keysight IO software on the PC.
Passive probe
Two channel machines equipped with two passive probes; Four channel machines equipped with four passive probes; 100MHz machine equipped with HT-100B; 200MHz machine equipped with HT-200B; 350MHz machine equipped with HT300B; 500MHz machine equipped with HT500B.
Power line
The instrument comes with a standard power cord from the user's country, which can also be purchased separately.
Packing list
Including: calibration certificate, packing list, warranty card, and certificate of conformity.
Optional Accessories

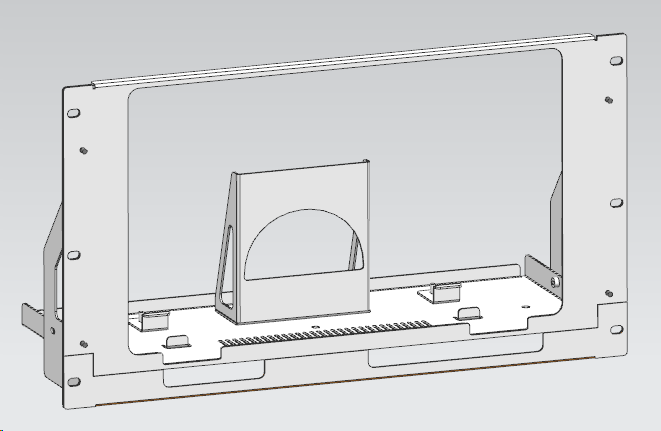

Oscilloscope rack kit
Used to secure the machine to the testing cabinet for use.

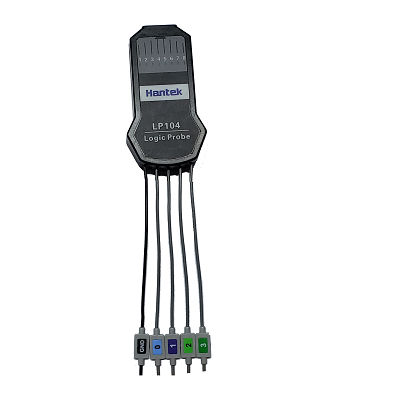

Logic Analyzer - Probe
Logic analyzer test accessories.
Logic Analyzer - Clip
Test clips for logic analyzers.
Logic Analyzer - Connection cable
Logic analyzer test accessories.
DPO8000 DataManual
2025-06-14
DPO8000 UserManual
2024-10-19
DPO8000 QuickGuide
2024-10-19
DPO8000 Programming Guide
2024-10-19
Probe
Model Description View Manual
HT300B,HT500B 350Mhz,500MHz,10:1/1:1 Download
HT-100B，HT-200B 100MHz,200MHz,10:1/1:1 Download
PP-80,PP-150,PP-200 60MHz,100MHz,200MHz,10:1/1:1 Download
PP80B, PP150B, PP200B, PP300B 80Mhz, 150MHz, 200MHz, 300MHz, 10:1/1:1 Download
PP-90 80MHz,10:1/1:1 Download
T3100 100MHz，100：1，2000VDC Peak AC Download
AC/DC Current Clamp
Model Description View Manual
CC65 AC/DC: 0 – 20KHz，20mA to 65A DC Download
CC650 AC:0 – 5KHz，1A - 500A ，DC:1A - 650A Download
CC800 AC:0 – 5KHz，1A - 500A ，DC:1A - 800A Download
High voltage isolated probe
Model Description View Manual
HT8050 50MHz，1300V peakAC，1:50，1:500 Download
HT8100 100MHz，1300V peakAC，1:50，1:500 Download
