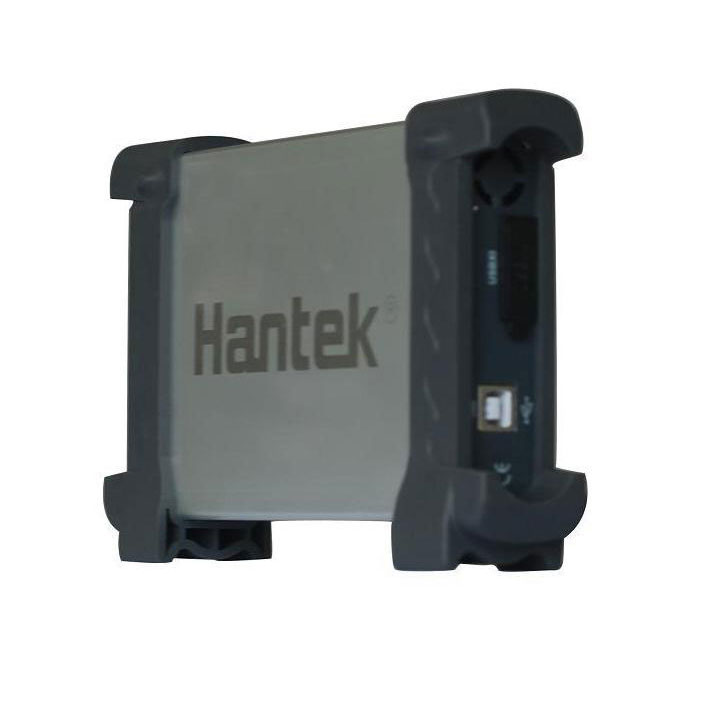

Hantek365A
Safe electrical isolation; Long time record voltage, current, resistance and capacitance etc. in real time, and create trend curves; Plug & play;
OneDrive Download
-
Long time record voltage, current, resistance, capacitance and on-off etc. in real time, and create trend curves.
-
Plug play USB interface.
-
Simple, handy and flexible control software.
-
Software support: Windows 2000, Windows 7, Windows XP, Win8.
|
Function
|
Range
|
Accuracy
|
Resolution
|
|
DC Voltage
|
60.00mV
|
±1% ±1 digit
|
10uV
|
|
600.00mV
|
100uV
|
|
6.00V
|
1mV
|
|
60.00V
|
10mV
|
|
60.00V
|
100mV
|
|
800V
|
1V
|
|
AC Voltage
|
60.00mV
|
±1%±3 digit
|
10uV
|
|
600.00mV
|
100uV
|
|
6.00V
|
1mV
|
|
60.00V
|
10mV
|
|
600.0V
|
100mV
|
|
DC Current
|
60.00mA
|
±1.5%±1 digit
|
10uA
|
|
600.00mA
|
±1%±1 digit
|
100uA
|
|
6.000A
|
±1.5%±3 digit
|
1mA
|
|
10.00A
|
10mA
|
|
AC Current
|
60.00mA
|
±1.5%±1 digit
|
10uA
|
|
600.00mA
|
±1%±1 digit
|
100uA
|
|
6.000A
|
±1.5%±3 digit
|
1mA
|
|
10.00A
|
10mA
|
|
Resistance
|
600
|
±1%±3 digit
|
0.1Ω
|
|
6.000 K
|
±1%±1 digit
|
1Ω
|
|
60.00 K
|
10Ω
|
|
600.0 K
|
100Ω
|
|
6.000 M
|
1KΩ
|
|
60.00 M
|
±1.5%±3 digit
|
10KΩ
|
|
Capacitance
|
40.00nF
|
±1%±1 digit
|
10pF
|
|
400.00nF
|
100pF
|
|
4.000uF
|
1nF
|
|
40.00uF
|
10pF
|
|
400.0uF
|
100pF
|
|
Attention: The smallest capacitance value that can be measured in 5nF
|
|
Diode
|
0V~2.0V
|
